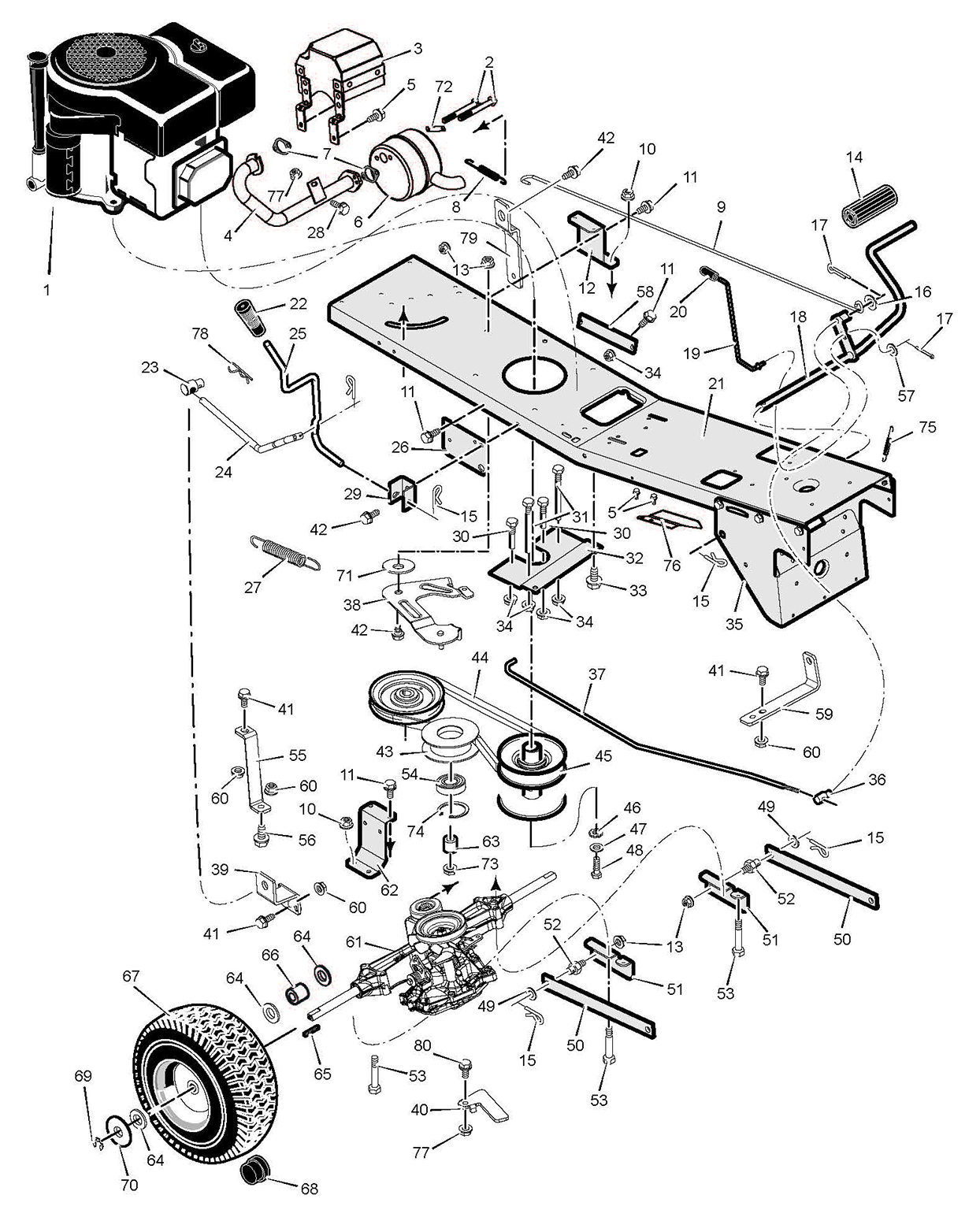

RGC760 [ エンジン取り付け部 ] 機体番号：202504146～
| 部品名 | コード番号 | 使用個数 |
|---|---|---|
| Engine | 20725-02001 | |
| Bolt, Hex | 1x134 | |
| Shield Assembly, Heat | 1401207 | |
| TUBE, Exhaust | 1401357MA | |
| Screw | 25x2 | |
| Muffler | 1401251 | |
| Gasket, Muffler | 91309 | |
| Spring, Extension | 20725-06037 | |
| Spring, Extension | 20725-06038 | |
| Nut | 15x88 | |
| Screw | 26x249 | |
| Bracket, Left Transaxle | 1401042 | |
| Nut, Flange | 15x84 | |
| Cover, Pedal | 21544 | |
| Pin, Cotter | 31x4 | |
| Washer | 17x53 | |
| Pin, Cotter | 30x20 | |
| Pedal Assembly | 20725-06039 | |
| Rod, Parking Brake | 1401112 | |
| Grip, Parking Brake Rod | 91079 | |
| Frame | 1401256E701 | |
| Grip, Shift Lever | 92697 | |
| Nut, Adjusting | 1401148 | |
| Link, Shift | 20725-06040 | |
| Lever, Shift | 1401111 | |
| Bracket, Lift Pivot | 1401032 | |
| Spring, Extension | 165x147 | |
| Bolt, Hex | 20725-06041 | |
| Governor rod bracket | 20725-06042 | |
| Guide, Short Belt | 1401104 | |
| Guide, Long Belt | 1401105 | |
| Plate, Belt Guide | 20725-06043 | |
| Bolt | 25x7 | |
| Nut, Flange | 15x79 | |
| Bracket, Support | 1401059 | |
| Nut, Adjusting | 94815 | |
| Rod, Clutch | 20725-06044 | |
| Clutch Arm Assembly | 20725-06045 | |
| Ring, Retainer | 20725-06046 | |
| Pulley, Drive | 20725-06047 | |
| Bolt, Carriage | 20725-06048 | |
| Bolt, Shoulder | 9x73 | |
| Pulley, Idler | 20725-06049 | |
| Belt, Motion Drive | 20725-06050 | |
| Pulley, Split Stack | 20725-06051 | |
| Washer, Star | 19x35 | |
| Washer | 17x170 | |
| Bolt, Hex | 1x140 | |
| Washer | 17x102 | |
| Arm, Rear | 1401031E701 | |
| Bracket, Rear Hanger | 20725-06052 | |
| Pin, Threaded Shoulder | 94067 | |
| Bolt, Hex | 20725-06053 | |
| Bolt | 20725-06054 | |
| Bracket, Torque Reactor | 20725-06055 | |
| Screw | 20725-06056 | |
| Washer, Shift Yoke | 17x38 | |
| Support, Frame | 1401260E701 | |
| Brake arm | 20725-06057 | |
| Nylon locking nut M8 | 20725-06058 | |
| Transaxle, Hydro Gear | 20725-06059 | |
| Bracket-L,Transaxle Bracket-R,Transaxle |
20725-06060-L 20725-06060-R |
|
| Spacer | 690369 | |
| Washer | 17x160 | |
| Key, Square | 56534 | |
| Spacer,Rear Wheel | 20725-06061 | |
| Wheel, Rear -15” |
20724-10010-L（左） 20724-10010-R（右） |
|
| Cap, Hub | 94618 | |
| E-Ring | 0011X3 | |
| Washer | 17x195 | |
| Washer | 20725-06062 | |
| Lock, Screw | 92378 | |
| Nut | 15x98 | |
| Card Spring | 20725-06063 | |
| Tension spring | 20725-06064 | |
| Heat shield | 20725-06065 | |
| Nylon locking nut M6 | 20725-06066 | |
| Pin,Cotter | 31x5 | |
| Brake bracket | 20725-06067 | |
| Bolt , Carriage | 20725-06068 |
