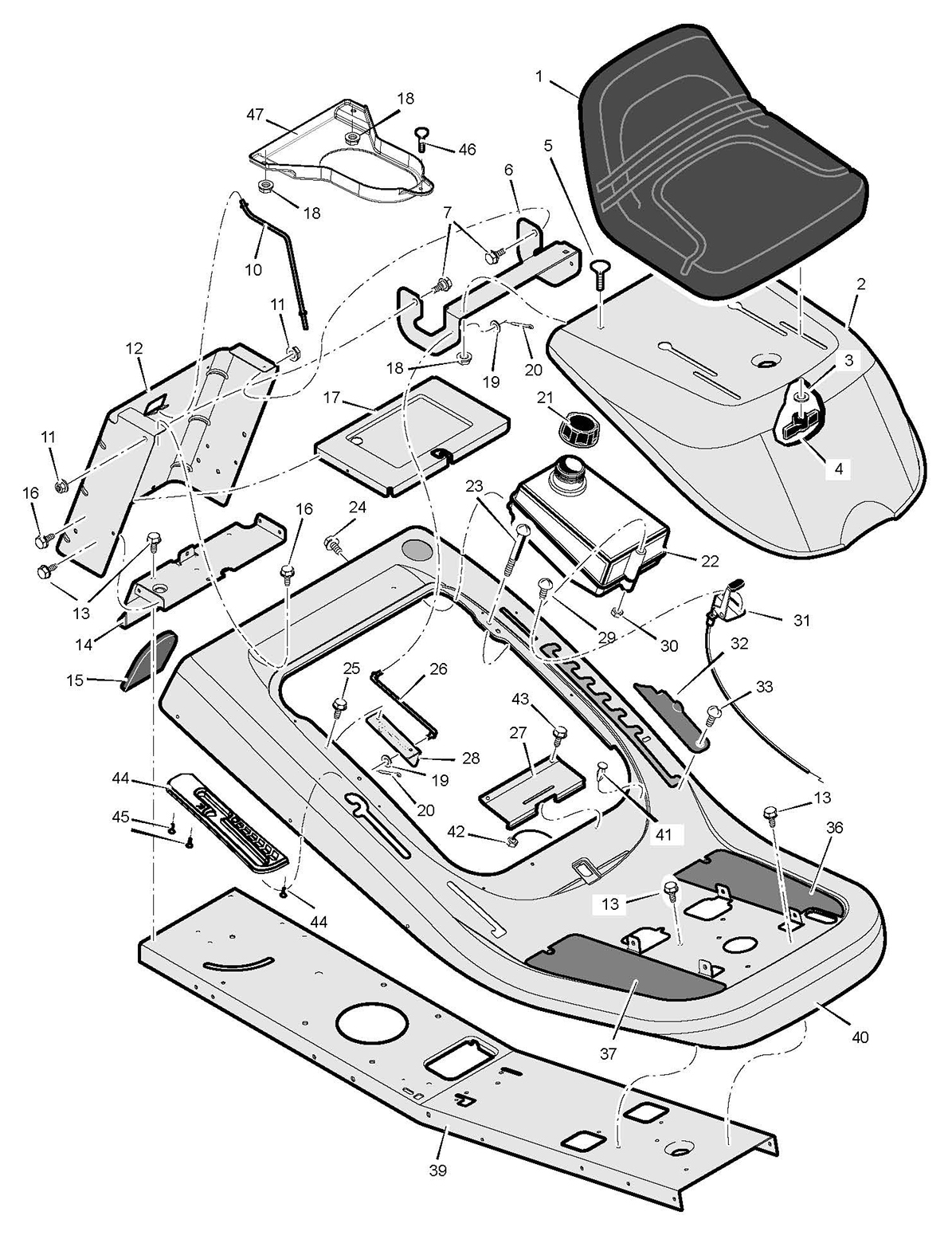

RGC760B [ 座席部 ] 機体番号：202504146～
| 部品名 | コード番号 | 使用個数 |
|---|---|---|
| Seat | 690566 | |
| Hood | 1401027E700 | |
| Washer | 17x47 | |
| Bolt, Wing | 1001054 | |
| Bolt, Carriage | 2x53 | |
| Bracket, Hinge | 1401036E701 | |
| Bolt, Shoulder | 9x29 | |
| --- | --- | |
| --- | --- | |
| Rod, Battery | 1401113 | |
| Nut, Flange | 15x84 | |
| Plate, Rear | 1401025E701 | |
| Screw | 26x249 | |
| Plate, Hitch | 1401050E701 | |
| Cover | 1401086 | |
| Screw | 26x263 | |
| Tray, Battery | 20725-06035 | |
| Nut, Flange | 15x79 | |
| Washer | 17x37 | |
| Pin, Cotter | 30x20 | |
| Cap, Fuel Tank | 92317 | |
| Tank, Fuel | 1401240 | |
| Screw | 6x111 | |
| Screw | 26x253 | |
| Screw | 26x263 | |
| Rod, Hood Prop | 1401110 | |
| Spring, Seat Deck | 1401282 | |
| Bracket, Prop Rod | 1401056E701 | |
| Screw | 26x201 | |
| Nut, NY-Lock | 15x116 | |
| Control, Throttle | 1401248 | |
| Cover, Detent (Black) | 1401084 | |
| Bolt, Shoulder | 9x47 | |
| --- | --- | |
| --- | --- | |
| Footmat, Left (Black) | 1401229 | |
| Footmat, Right (Black) | 1401228 | |
| --- | --- | |
| Frame | 1401256E701 | |
| Deck, Seat | 20725-06036 | |
| Bumper | 94744 | |
| Nut | 15x116 | |
| Screw | 25x2 | |
| Gear panel | CJ1401630 | |
| ST4x12 | ST4x12 | |
| FASTENER, Panel | 0193X1MA | |
| PLENUM | 1401380MA |
